MODEL

Broşür görmek istermisiniz PDF formatında Acrobat reder greklidir 288  kb

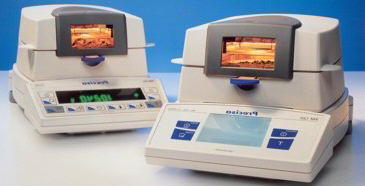

XM120

XM60



Heat source: Radiator typ Halogen / IR quartz rod / Dark radiator Halogen / IR quartz rod / Dark radiator
Radiator is field replaceable X -
Weighing System:
Weighing Range [g] 124 62
Minimum sample weight [g] 0.2 0.2
Readability [g] 0 0
Drying:
Readability [%] 0.01 0.01
Reproducibility[%] :
- in approx. ... g / ... % 1 / 0.2 1 / 0.2
- in approx. ... g / ... % 10 / 0.02 10 / 0.02
Result calculation:
100% ... 0% X X
0% ... 100% X X
ATRO 100% ... 999% X X
ATRO 0% ... 999% X X
g/kg X X
Residual weight[g] X X
Weight loss [g] X X
Preset to 100% X -
Heating:
Temperature range / increment [°C] 30 - 230 / 1 30 - 230 / 1
Intervals 3 boost + 1
Switch-off interval [Min.] 0.1 - 99.9 -
Switch-off interval [%] 0.1 - 99.9 -
Switch-off criteria:
Auto Stop [d/s] Freely definable Freely definable
Auto Stop [%/s] Freely definable -
Timer Stop [min.] 0.1 - 240 0.1 - 240
Minimum Stop [%] 0.1 - 99.9 -
Adapt Stop X X
Sequence control system:
fully automatic X X
semi-automatic X X
Standby temperature [°C] 30 - 100 30 - 100
Monitoring:
Inspection window X X
Buzzer X X
Printout:
GLP X X
Printout Interval [Min.] 0.1 - 10.0 0.1 - 10.0
User texts X -
Freely definable formats X -
Sample numbering X X
Memory capacity:
Methods (with all settings) 50 5
User texts 20 -
Operation:
Display LCD back-lit., graphics VFD, 20 Zeichen alphan.
Keyboard Various keys and a touch screen 10 Tasten (XT 320)
Menu-controlled X X
Sample feed manuell manuell
Password protection X X
Special features:
Weighing- Guidance X X
Statistics X -
Remote control (heating) X X
Calibration
Waage external external
Temperature 100°C und 160°C 100°C und 160°C
Miscellanous:
Timer for date and time X X
PC / printer interface RS 232 RS 232
Digital I / O optional optional
Anti-theft protection code and mechanical code and mechanical
